X-ray fluorescence (XRF) is a practical technique used to determine the elements present in a material.
It works by directing high-energy X-rays at a sample, which then emits its own unique X-rays in response. These emissions act as a fingerprint, revealing the elements in the material. The best part? It does so without damaging the sample, making it a popular method for quality control and material verification.
XRF is used across a wide range of industries. Jewellers use it to check the purity of gold and silver, recycling plants use it to sort metals, and construction companies rely on it to ensure that building materials meet safety standards. It’s quick, accurate, and requires minimal preparation, making it an ideal choice when rapid results are needed.
Because XRF can detect elements ranging from light metals like magnesium to heavier ones like uranium, it’s a versatile tool.
Whether identifying lead in old paint, testing soil for contaminants, or verifying the composition of stainless steel, XRF plays a crucial role in ensuring materials are safe and up to standard.
In this post:
Key Takeaways
XRF allows you to analyse materials without damaging them, so they can be reused after testing
Results are available in minutes, enabling on-the-spot material checks
XRF has a wide range of applications, from gold testing in jewellery to verifying steel in bridges
Unlike other methods, XRF requires minimal preparation before use
The XRF Process Explained
Understanding how XRF works helps explain why it’s so effective.
The process involves exposing a material to high-energy X-rays, which ‘excites’ its atoms. These excited atoms then release their own X-rays at specific energy levels unique to the elements present. By reading these signals, an XRF device can identify the elements in the sample and determine their quantities.
Think of it like a barcode scanner. Just as every product in a shop has a unique barcode, each element emits a distinct X-ray pattern. The XRF device scans the sample, captures these signals, and translates them into a breakdown of the elements.
One major advantage of XRF is that it works on solid, liquid, and powdered samples. This makes it applicable to fields ranging from food safety (detecting unwanted metals in baby formula) to analysing ancient artefacts in museums.
Here’s how it works:
- Primary X-rays knock an electron out of one of the orbitals around the nucleus in an atom of the material. This leaves a hole in the orbital, making the atom unstable and high in energy.
- To balance things out, an electron from an outer orbital, which is higher in energy, drops into the hole. The extra energy is released as fluorescent X-rays.
- The energy difference between the expelled and replacement electrons is unique to the element where the fluorescence happens.
The accuracy of the results depends on the strength of the X-ray beam and how well the sample absorbs it. For example, a thicker metal piece requires a more powerful beam to penetrate it effectively.
Interpreting XRF Spectra
Once the X-ray emissions are detected, the next step is to interpret the data. The results appear as a spectrum, a graph with peaks representing different elements. The higher the peak, the more of that element is present in the sample.
Each element has a unique energy signature, so by matching the peaks to known values, you can identify the elements in the sample.
For instance, when testing a metal alloy, a high peak at the energy level for iron suggests a large amount of iron, while smaller peaks at other energy levels might indicate traces of nickel, chromium, or other elements.
Interpreting XRF spectra involves analysing both the height and position of the peaks. The height represents the concentration of an element, while the position on the X-axis shows which element it belongs to.
For example, a jeweller testing a gold ring might see a strong peak at the gold energy level, but if there are also peaks for copper and silver, it means the ring is an alloy rather than pure gold.
Meanwhile, in environmental testing, analysis of a soil sample showing high peaks for lead or arsenic could indicate contamination that needs further investigation depending on its intended use.
Industrial Applications of XRF
XRF is widely used across industries for fast, reliable, and non-destructive testing to verify material composition. From ensuring safety in the oil and gas industry to assisting recyclers in sorting valuable metals, its applications are vast.

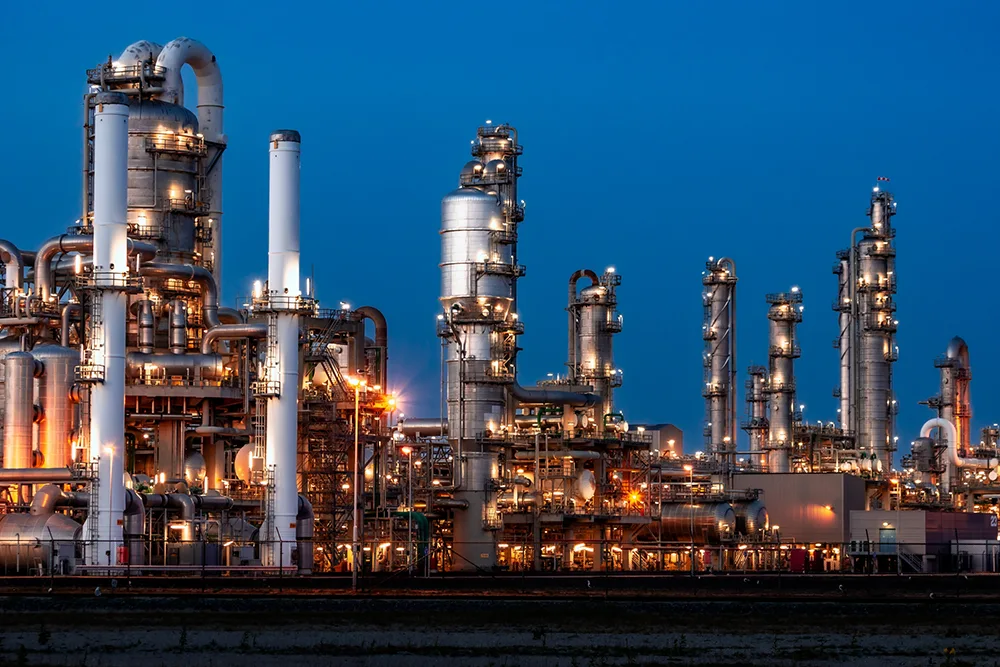

Positive Material Identification in Oil and Gas
In the oil and gas industry, using the wrong materials can result in critical failures. Pipes, valves, and fittings must be made from materials that can withstand high temperatures, pressure, and corrosive environments. XRF is used to verify the composition of these components, ensuring they meet industry standards and helping producers identify the chemicals in their products.
If a pipeline section that is supposed to be stainless steel contains too much carbon steel, it could corrode quickly, leading to dangerous leaks or structural failures. XRF enables on-site verification, preventing costly mistakes.
Quality Control in Metal Fabrication
Metal fabrication involves cutting, welding, and assembling metal parts for sectors like construction, manufacturing, and automotive. Quality control is vital to ensure the right alloys are used and that products meet stringent safety standards.
XRF allows manufacturers to test raw materials before they are processed and check finished products before shipment.
If a batch of steel beams needs specific strength and corrosion resistance, XRF can confirm that the correct alloying elements are present.
Alloy Verification in Automotive and Aerospace
In the automotive and aerospace industries, vehicles and aircraft rely on strong yet lightweight alloys that must meet precise specifications. A single incorrect part in an aircraft engine or a vehicle’s suspension system could result in serious failure.
XRF plays a key role in verifying that materials meet engineering requirements. Aerospace manufacturers use it to test titanium and aluminium alloys in jet engines, while car makers check that structural components contain the correct metal mix for durability and crash resistance.

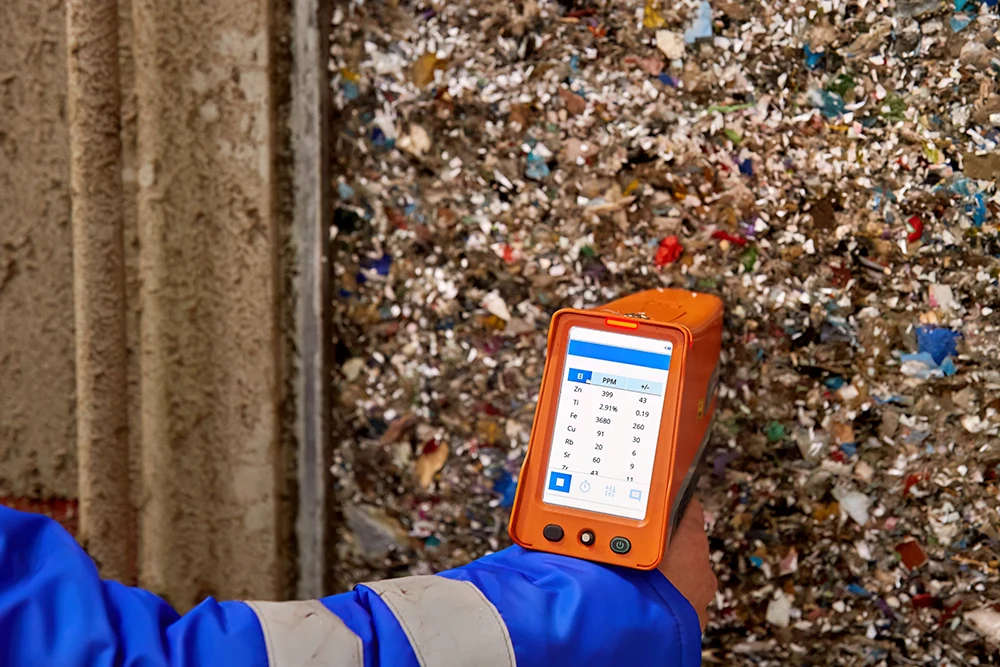

Scrap Metal Sorting in Recycling
Recycling plants process massive volumes of mixed metals, so sorting them correctly is essential for both efficiency and profitability. XRF allows recyclers to quickly identify metals such as aluminium, brass, copper, and stainless steel.
This accelerates processing, enhances the quality of recycled materials, and ensures valuable metals don’t end up in the wrong batches. For example, XRF can separate high-grade stainless steel from lower-value steel, maximising the value of scrap material.
Precious Metal Analysis in the Jewellery Sector
Jewellers, pawn shops, and refiners use XRF to determine the purity of precious metals, such as gold, silver, and platinum.
Instead of relying on acid tests or other destructive methods, XRF provides an accurate reading of metal composition in seconds.
This is particularly useful in the jewellery trade, where even small variations in purity can significantly impact an item’s value.
Geochemical Analysis in Mining and Exploration
Mining companies use XRF to test rock, soil, and drill core samples for valuable minerals. It helps geologists quickly assess the potential of a mining site before committing to expensive excavation and acquiring mining chemicals for the process.
By identifying elements like copper, zinc, or rare earth metals in rock samples, XRF helps mining operations make informed decisions about where to dig and how to process extracted materials.
Conclusion
XRF is an invaluable tool for identifying and measuring elements in various materials. From testing the purity of gold to ensuring the safety of oil pipelines, its non-destructive approach and rapid results have made it a trusted method across multiple industries. As technology advances, XRF devices are becoming even more accurate and portable, enhancing their value in practical applications, whether that’s in a laboratory, factory, or field.
