Glass vials are commonly used as medicine or sample containers, and they vary in size, shape, and purpose. Medicine and laboratory work would be very disorganised and imprecise without the use of this small but crucial container.
Otherwise known as a phial or flacon, a vial is typically made of plastic or glass. It usually has a resealable cap, made from either plastic or aluminium – although some caps are specially designed as composites of plastic and rubber or metal and rubber.
In this post:
Key Takeaways
Glass vials are commonly used in pharmaceutical and laboratory industries
They’re made from high-quality glass, usually borosilicate or soda-lime
Automated manufacturing enables large-scale, high-volume production
Glass vials provide excellent thermal resistance and chemical stability
Different vial types (Type I–IV) suit specific medical and laboratory uses
Global demand for glass vials surged during COVID-19 due to mass vaccine production
How Are Glass Vials Made?
Glass vials and ampoules are usually mass produced by a company that manufactures medications, vaccines, toxoids, anaesthesia, and other pharmaceutical products.
They can also be made by specialised glass manufacturing companies, who may be contracted by pharmaceutical and laboratory companies to manufacture specialised laboratory glass equipment and pharmaceutical vials based on their specific needs.
Just like other types of glassware, a glass vial is made from silica sand, which is the source of silicon dioxide (SiO2).
High quality glass is 70% silicon dioxide by weight. The silica sand, however, must be at least 98% pure for it to be useful in glass manufacturing. Additionally, it must contain between 0.025% and 0.04% of ferric oxide (Fe2O3), and the sand grains must be of precise sizes ranging from 0.075 mm to 1.18 mm.
Using the correct proportions of silicon dioxide and ferric oxide is important to ensure the quality of the glass vial. The requirements for laboratory glassware and glass vials are extremely technical in order to ensure structural integrity and resistance to heat.However, glassware products, including glass vials, are usually made from raw glass or glass blanks, rather than being made from silica sand. The mass production of glass vials is faster this way. It would require additional industrial equipment and an additional amount of time if silica had to first be processed into raw glass.
The basic ingredients of glass are:
- Sand or silica: This has to be melted at 2,000°C. From here, it can be turned directly into other materials, like halogen lamps and some parts of fibre optics
- Sodium carbonate: This lowers the melting point of silica to around 1,000°C.
- Lime or calcium oxide: This counters the solubility effect of sodium carbonate in water. Other substitutes such as magnesium oxide and aluminium oxide can also be used.
- Colour additives: Certain compounds can be added to molten glass to give it colour. For example, if a very small amount of cobalt is added, the glass will be blue. Meanwhile, if sulphur, carbon, and iron salts are added, the colour will be amber. You can even mimic opaque white porcelain if you add tin oxide, antimony, and arsenic.
- Other additives: Other substances can also be added into the molten glass mixture to alter or improve some of its properties. Some of the most common additives are:
- Lead: Improves the reflective properties of the glass
- Boron: A common additive in Pyrex laboratory glassware, boron changes the thermal and electrical properties of glass, allowing it to withstand extreme temperatures
- Lanthanum oxide: Added to improve the reflectivity of glass, it’s very useful in making high quality glass lenses
- Iron: Increases the infrared filtering ability of glass, preventing too much heat from passing through

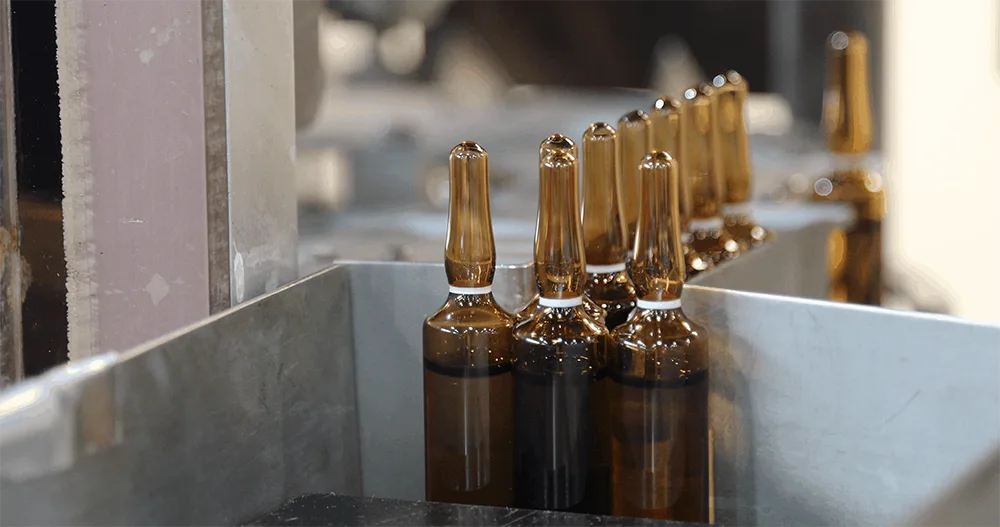

To speed the process up even more, the basic steps in manufacturing glass vials are now fully automated. In fact, as much as 600 glass vials per minute can be manufactured using modern machinery.
This increased capability is crucial. As the global need for vaccines for unprecedented health emergencies such as the COVID-19 pandemic dramatically increases, the demand for glass vials is also at an all time high. The number needed for COVID-19 vaccines is in the billions, and automation in the manufacturing process allows companies to keep up with this urgent demand.
Aside from raw glass or glass blanks, vials can also be manufactured from moulded glass or from continuous lengths of glass tubing. Many companies also use recycled glass. Here, small vials and other types of glass containers are mass produced using either the press-and-blow method or the blow-and-blow method.
Press-and-blow method:
- First, molten glass (known as gobs) is put into a mould
- A combination of compressed air and vacuum helps the gobs take the form of the mould, pushing them onto the inner surfaces
- Meanwhile, a pressing plunger is inserted below
- After the molten glass has fallen into the mould and the mould has been closed off, the plunger is used for shaping.
- Then, in a process called annealing, the vials are reheated and cooled in a lehr (furnace) to remove the stress caused by the blowing process, preventing glass breakage
Blow-and-blow method:
- The gobs are poured into a mould and the neck is formed
- A parison is made by blowing air into the molten glass so that it fills the edges of the mould
- It’s then transferred to another mould for the press and blow method
Another way of manufacturing glass vials is from a continuous length of Type I glass tubing. This requires a flame and a cutting tool in order to heat up the tubing and cut off the right amount. In this process, vials also undergo annealing to reduce the stress on the glass.
What Are Glass Vials Used For?
Demand for glass vials dramatically increased during the SARS-CoV2 (COVID-19) pandemic, as they were essential for producing multi-billion units of vaccines.
Glass vials are used to store a wide range of medications that include vaccines, toxoids, anti-venoms, anaesthetic, and hormones. They’re very useful in storing injectables in sealed and sterile conditions. Typically, the vials for injectables are small and only for one-time use. Other types of vials are used to store biological and chemical samples for laboratory analyses.
Watch this ampoule filling process to see how glass ampoules are filled and sealed:
What Are the Different Types of Glass Vials?
Glass vials are classified based on their composition and intended use. Many are designed for pharmaceutical use, such as for packaging pharmaceutical products. Others are designed to contain laboratory samples.
The sizes and shapes vary depending on the purpose, but they usually all feature sealed or resealable caps.
The different types of glass vials include:
- Type I glass containers (borosilicate glass/neutral glass): This type of glass container is composed of 80% silica and 10% boric oxide, with small amounts of sodium oxide and aluminium oxide. These containers have high heat resistance and are ideal for strong acids and alkalis
- Type II glass containers (soda-lime-silica glass/treated soda-lime glass/de alkalized soda lime glass): These are modified Type III glass and have lower melting points than Type I glass, making them easy to mould
- Type III glass containers (regular soda lime glass): These are composed of 75% silica, 15% sodium oxide, 10% calcium oxide, and trace amounts of aluminium oxide, magnesium oxide, and potassium oxide. They’re commonly used as packaging containers
- Type IV glass containers (type NP glass/general-purpose soda lime glass): These have low hydrolytic resistance. They’re not suited for products that need to be autoclaved. They’re commonly used for storing topical products and oral dosage products
Conclusion
Glass vials may be small, but they play a vital role in modern medicine and science. They’re engineered for precision, safety and reliability, so they can safely store sensitive pharmaceuticals and laboratory samples. Global health emergencies such as COVID-19 saw automated production of glass vials increase dramatically, to keep up with demand for vaccines.
